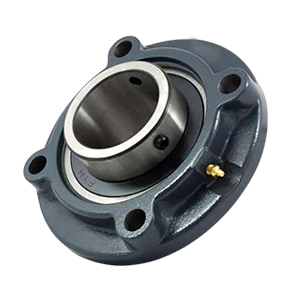

ROUND FLANGED UNIT (UCFC) Series Pillow Blocks

DESIGN FEATURES AND ADVANTAGES OF UCFC- SERIES

Four-bolt round flanged units are recommended for industrial applications where normal loads are applicable and this unit is the combination of ball barring, round flange with spigot joint on the mounting surface.

With the use of four bots and spigot joint provision the hosing can be fitted into the machinery mounting holes easily and its accurate mounting ensure the capability of heavy loads.

These assembled units come with ready mounting position, using four bolts through the flange.

Bolt-hole distance and shaft center location are interchangeable with competitive units.

The insert ball bearing unit combined the spherical outer surface of the bearing match the concave shaped in inside diameter of the housing which gives the unit unique self-aligning ability.

These flange units are pre lubricated, which can be easy to install on immediate necessity.

Designed with grease nipple provision for re- lubrication

Its special bonded seal design is appropriate for wet or dull environments.

The flange unit can be fitted to machines with four-bolts.

Suitable for wall mounting surface, for example the side of machinery. Special designed housing to replace the bearing comfortably.

Application

Rotating drum

Rotating roller

General industrial equipment.

Purposes excellent mounting accuracy is required

The housing can be installed to machines with four bolts.
