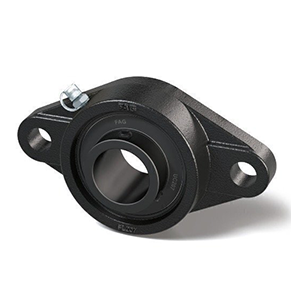

OVAL FLANGED UNIT (UCFL) Series Pillow Blocks
DESIGN FEATURES AND ADVANTAGES OF UCFL- SERIES
Two bolt Oval flanged units are recommended for industrial applications where normal loads are applicable.
Suitable for wall mounting surface, for example the side of machinery.
The flange unit can be fitted to machines with two-bolts.
Compact less weight housing, which requires lesser mounting space compare to square- flange units.
These assembled units come with ready mounting position, using two bolts through the flange.
Suitable for wall mounting surface, for example the side of machinery.
Bolt-hole distance and shaft center location are interchangeable with competitive units.
The insert ball bearing unit combined the spherical outer surface of the bearing match the concave shaped in inside diameter of the housing which gives the unit unique self-aligning ability.
These flange units are pre lubricated, which can be easy to install on immediate necessity.
Designed with grease nipple provision for re- lubrication its special bonded seal design is appropriate for wet or dull environments. Special designed housing to replace the bearing comfortably.
Application
Roller conveyor
General industrial equipment.
Environment the mounting dimensions are small
The housing can be installed to machines with two bolts.
